CyberPower - CyberPower Office Rackmount LCD Series OR500LCDRM1U

UPS - 300 Watt - 500 VA 7 Ah - RS-232, USB - output connectors: 6 - 1U

CyberPower
OR500LCDRM1U
N/A
20649532715019
N/A
New

Price: $198.63

Total Available: 0

Product Description

Additional Details

What's Included

Main Specifications

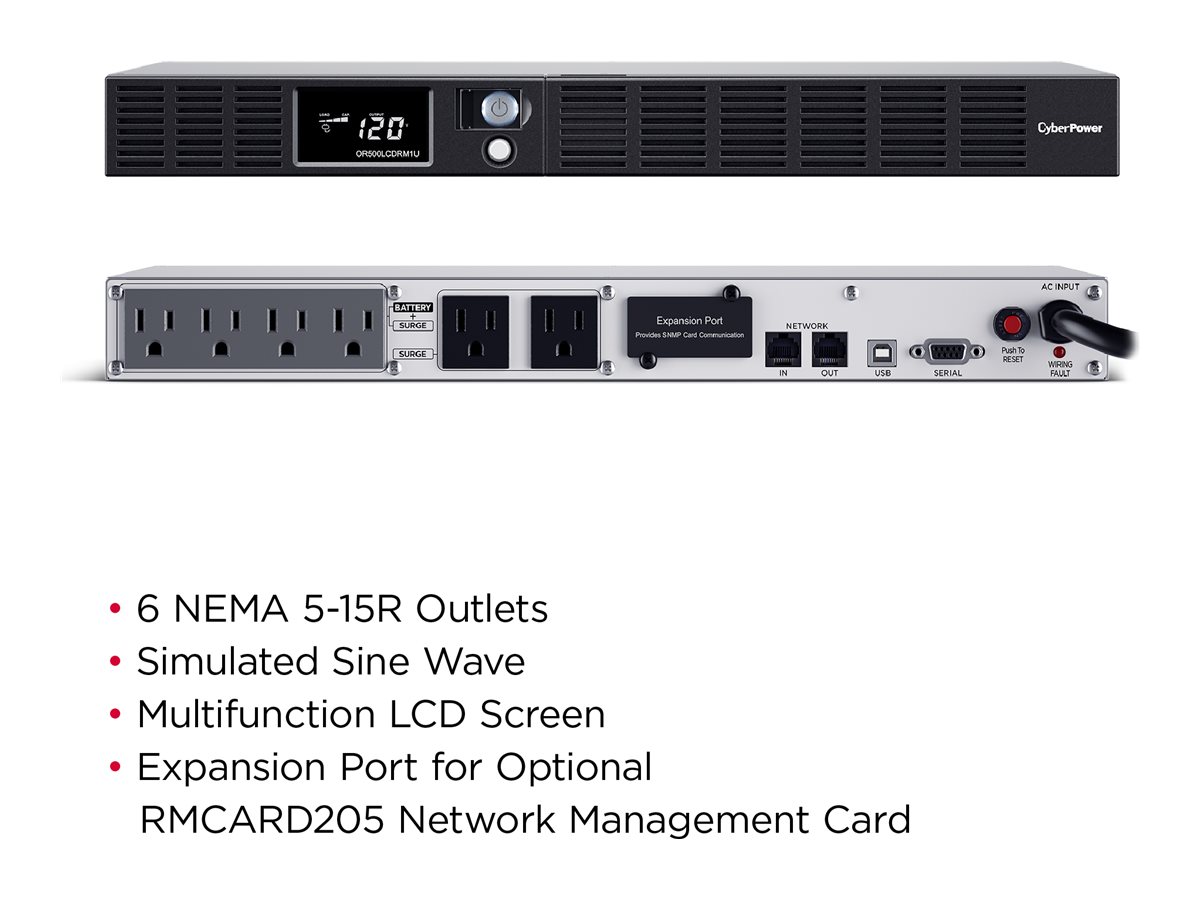

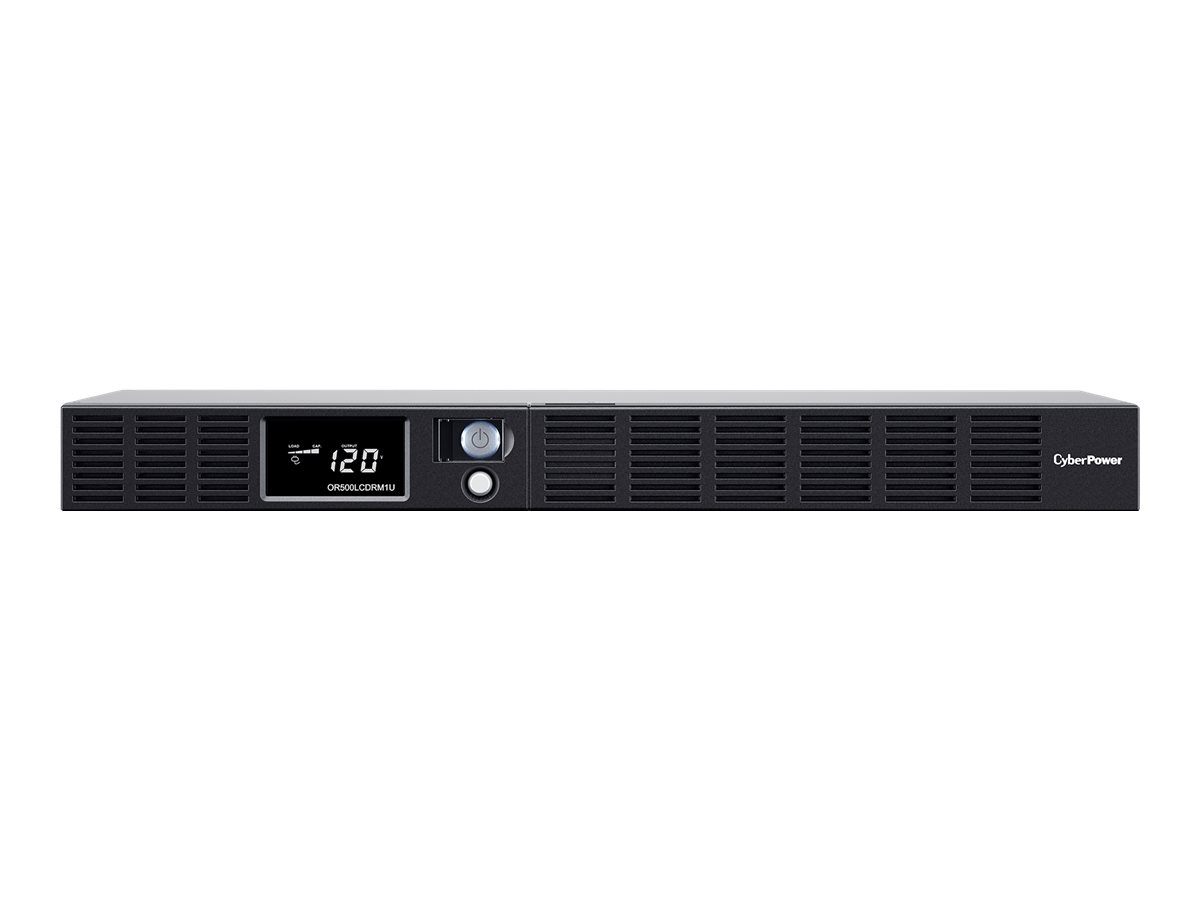

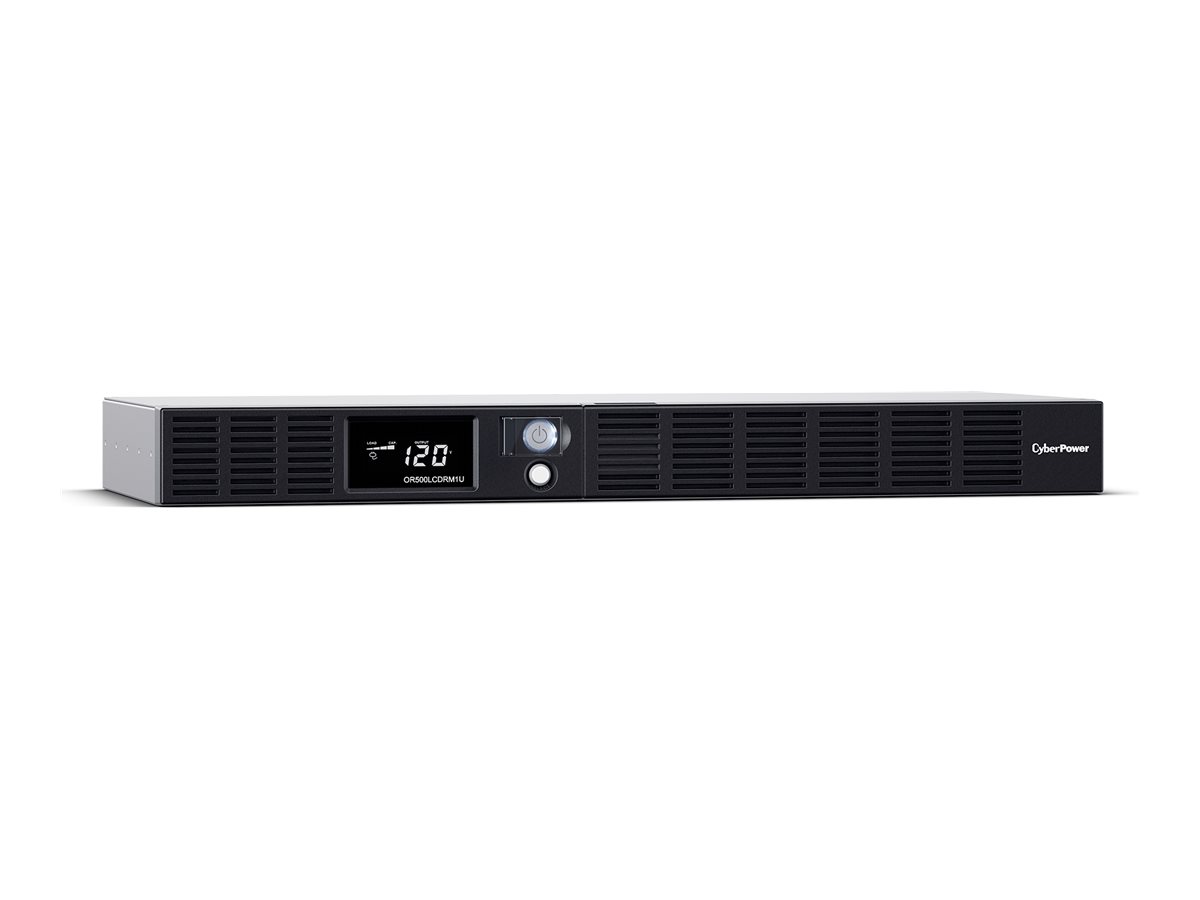

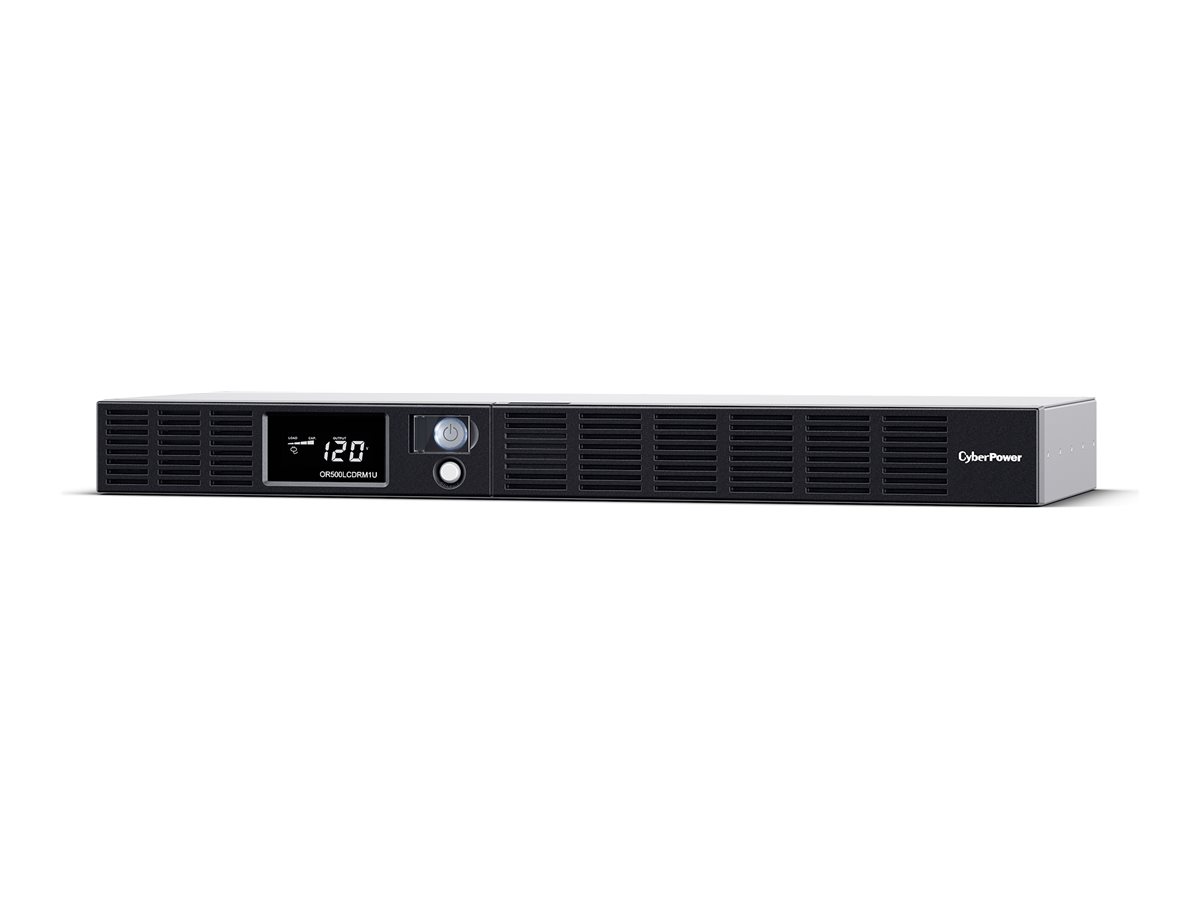

Product Description CyberPower Office Rackmount LCD Series OR500LCDRM1U - UPS - 300 Watt - 500 VA
Device Type UPS - external
Rack Size 1U
Weight 18.08 lbs
Output Voltage AC 120 V ± 10%
Power Capacity 300 Watt / 500 VA
Input Connectors 1 x power NEMA 5-15
Output connectors 4 x power NEMA 5-15 (UPS and surge) ¦ 2 x power NEMA 5-15 (surge)
Battery Lead acid - 7 Ah
Batteries Qty 2
Run Time (Up To) 3 min at full load
Networking RS-232, USB
Dimensions (WxDxH) 17 in x 9.3 in x 1.7 in
Manufacturer Warranty 3-year warranty
General
Device Type UPS - external
Height (Rack Units) 1U
Expansion / Connectivity
Interfaces 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type A
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Miscellaneous
Cables Included Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 10 ft
Equipment Protection Value 30000 US Dollars
Features Audible alarm, LCD display, Automatic Voltage Regulation (AVR)
Compliant Standards FCC Class B certified, cUL, UL 1778
Networking
Remote Management Interface RS-232, USB
Software / System Requirements
Software Included PowerPanel Plus
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95%
Battery
Quantity 2
Technology Lead acid
Voltage Provided 6 V
Capacity 7 Ah
Run Time (Up To) 3 min at full load
Recharge Time 8 hours
Power Device
UPS Technology Line interactive
Supported Battery Technology Lead acid
Input Voltage Range AC 90 - 140 V
Frequency Provided 60 Hz
Frequency Required 60 Hz
Input Connectors 1 x power NEMA 5-15

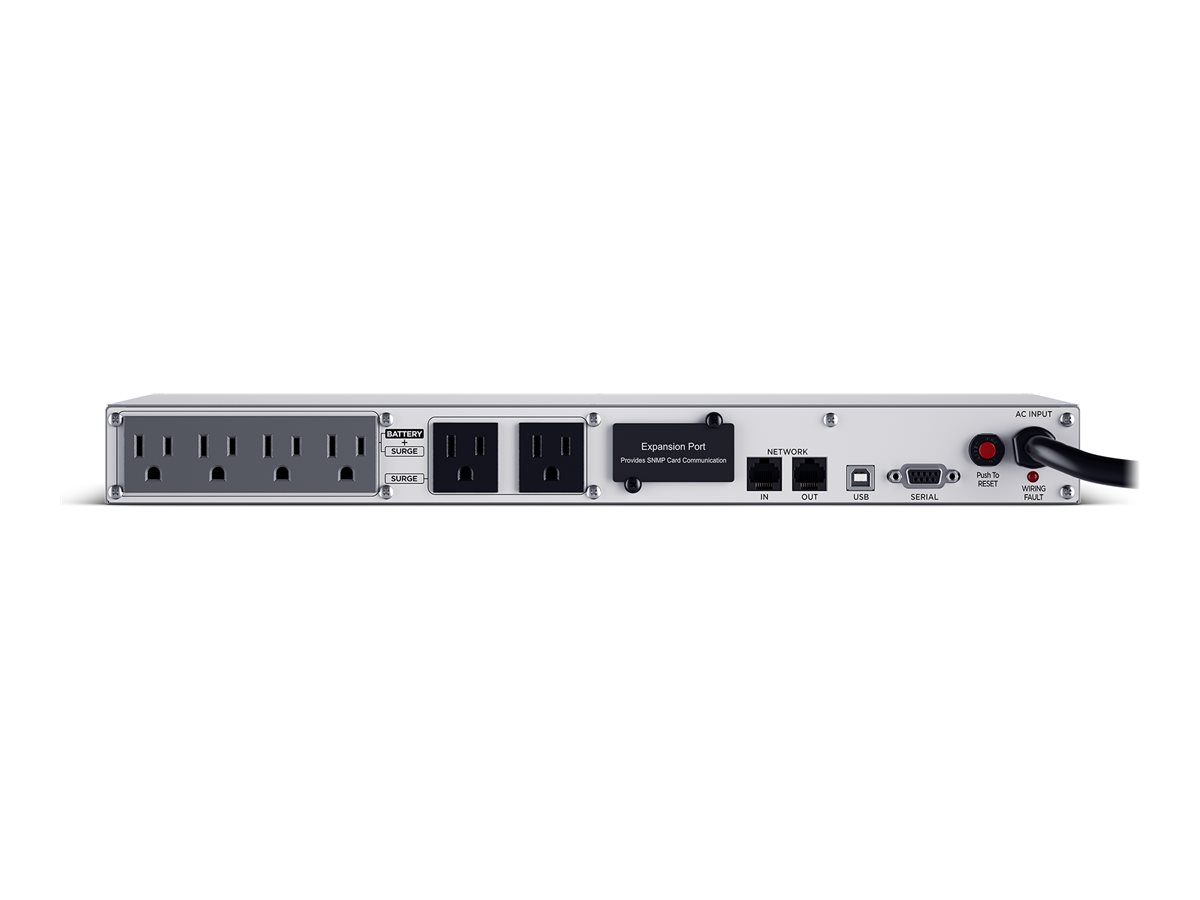

Power Output Connectors Details 4 x power NEMA 5-15 (UPS and surge) ¦ 2 x power NEMA 5-15 (surge)
Output Voltage AC 120 V ± 10% - 60 Hz
Power Capacity 300 Watt / 500 VA
Dataline Surge Protection Network/phone line - RJ-45/RJ-11
Output Waveform Stepped approximation to a sinewave
Surge Energy Rating 1030 Joules
Circuit Protection Circuit breaker
Dimensions & Weight
Width 17 in
Depth 9.3 in
Height 1.7 in
Weight 18.08 lbs
